PROPERTIES
- Soft and compliable
- Thermal conductivity: 2.5 W/mK
- Operates at low pressure
- Extraordinary chemical resistance and longterm stability
- Shock absorbing
- Easy mounting through self tackiness
- One or two-side self-tacky
AVAILABILITY
- Sheet 480 x 460 mm (Thickness 0.5/1.0 mm)
- Sheet 460 x 460 mm (Thickness 2.0 mm)
- Sheet 450 x 460 mm (Thickness >2.5 mm)
- Tacky on both sides
(TGF-MXXXX-SI) - Tacky on one side
(TGF-MXXXX-SI-A1) - Die cut parts
- Kiss cut parts on sheet

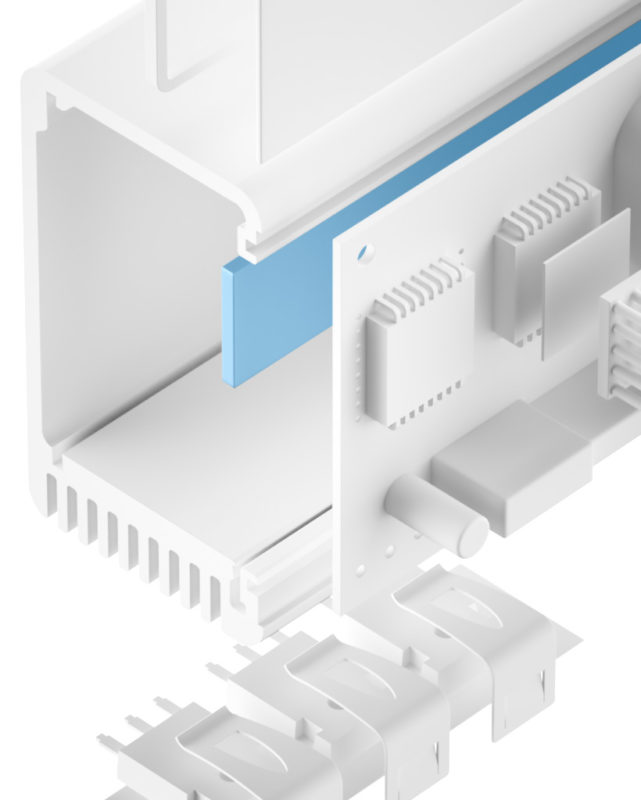

APPLICATION EXAMPLES
Thermal link of:
- SMD packages
- Through-hole vias
- Capacitors
- Electronic parts to heat pipes
For use in Automotive applications / Laptops / Medicine engineering/ Industrial PCs
OVERVIEW
Properties | Unit | TGF-M0500-SI | TGF-M1000-SI | TGF-M2000-SI | TGF-M3000-SI |
---|---|---|---|---|---|
Material | Ceramic filled silicone | Ceramic filled silicone | Ceramic filled silicone | Ceramic filled silicone | |
Colour | Light blue | Light blue | Light blue | Light blue | |
Thickness | mm | 0,5±0,05 | 1,0±0,10 | 2,0±0,20 | 3,0±0,30 |
Hardness | Shore 00 | 50 | 50 | 50 | 50 |
UL Flammability | V0 | V0 | V0 | V0 | |
RoHS Conformity | 2015 / 863 / EU | Yes | Yes | Yes | Yes |
Thermal | |||||
Resistance1 @ 60 PSI @ Thickness | °C-inch²/W (mm) | 0.27 (0.38) | 0.45 (0.71) | 0.75 (1.31) | 0.96 (1.76) |
Resistance1 @ 30 PSI @ Thickness | °C-inch²/W (mm) | 0.29 (0.42) | 0.50 (0.80) | 0.84 (1.50) | 1.09 (2.07) |
Resistance1 @ 10 PSI @ Thickness | °C-inch²/W (mm) | 0.32 (0.45) | 0.55 (0.90) | 0.95 (1.75) | 1.26 (2.46) |
Thermal Conductivity | W/mK | 2.5 | 2.5 | 2.5 | 2.5 |
Operating Temperature Range | °C | - 60 to + 180 | - 60 to + 180 | - 60 to + 180 | - 60 to + 180 |
Electric | |||||
Dielectric Strength | kV / mm | 10 | 10 | 10 | 10 |
Volume Resistivity | Ohm - cm | 1,0 x 1011 | 1,0 x 1011 | 1,0 x 1011 | 1,0 x 1011 |
Dielectric Constant | @ 1 kHz | 5.2 | 5.2 | 5.2 | 5.2 |
/
